Scenario 7.
Transparent proxying example: mail virus scanning.

Host 192.168.0.2 wants to receive email from a pop3 server, at address 193.70.193.80. It does not know about a mail scanner on network gateway, and does not want to bother about it. This way, all hosts in a private network can download their mail in tranquility, without having scanning or antivirus software installed.
So, a connection to 193.70.193.80 is started: the packet arrives to the network gateway, to reach external pop3 server. On the gateway IPFIRE ruleset, there is an indication to change destination port 110 (pop3) into port 8110, and destination address from real server address 193.70.193.80 to gateway input interface 192.168.0.1. On 192.168.0.1, port 8110 listens the email scanner: when receiving a connection, it doesn't know real server address automatically, because the destination address of the packet sent by the email client on host 192.168.0.2 has been changed by nat.
At this point, proxy scanner calls getsockopt function (see getsockopt() interface for further details) retrieves from IPFIRE translation tables the original server address and connects to it. Then mail is retreved and delivered to 192.168.0.2, which safely receives messages.. and transparently!
In the picture below you can see IPFIRE console output, while in the last picture you can observe what the email scanner sees from its point of view.

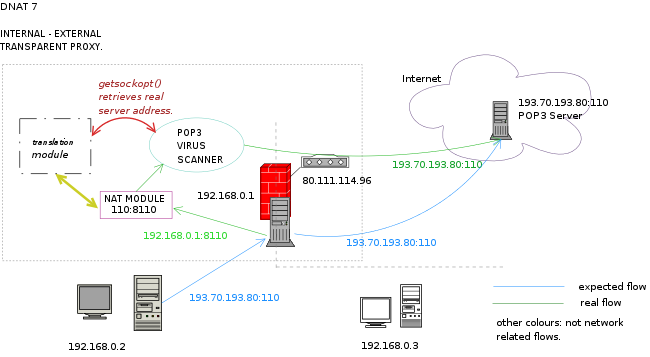

Transparent proxying on network gateway.

Transparent proxying on network gateway: p3scan email virus scanner with logging enabled.
